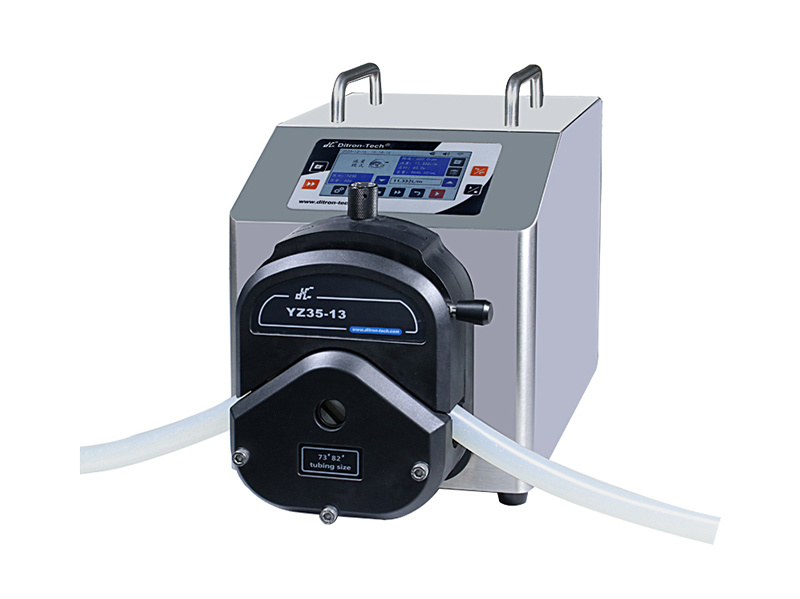

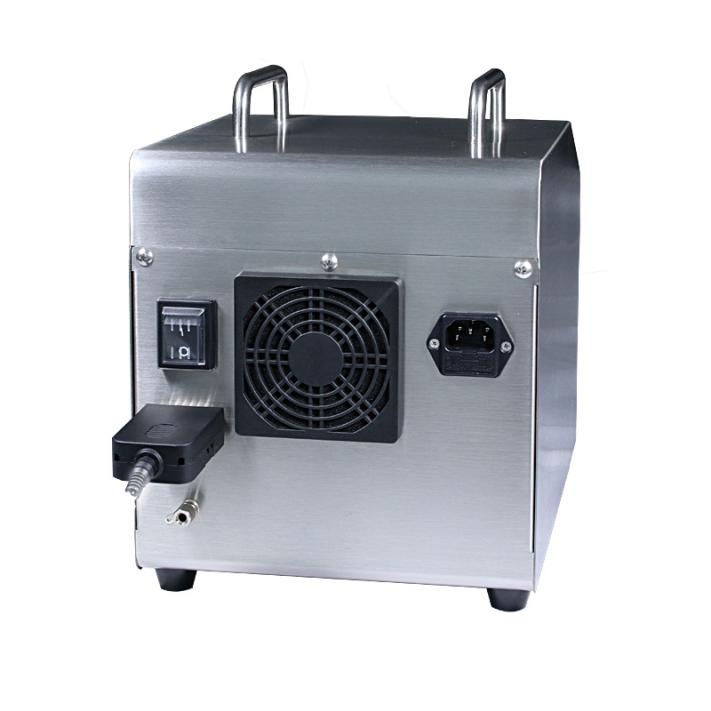

CF600G+YZ35-13

Flow range: ≤12000mL/min, and 30-1000mL liquid fill↔ing; four operation modes: flow mode, timed constanλt speed, constant speed constant volume, and timed constant volume; simultaneous operation of industrial touch♠ screen and membrane keypad

Category:

Intelligent Allocation Peristaltic Pump

Tags:

Peristaltic pump

Ditron-tech

sales3@ditrontech.com

Get a quote

Product Manual

CF600G+YZ35-13

Product Description

Commodity name: CF600G+YZ35-13

Flow range: ≤12000mL/min, and 30-1000mL liquid filling; four operation modes: f✘low mode, timed constant speed, constant speed constant vol₩ume, and timed constant volume; simultaneous operat¶ion of industrial touch screen and membrane keypad÷

Product Introduction

◆ Four operating modes: flow rate mode, timed speed control, speed and volume control, and timed volume control;

◆ Simultaneous operation with industrial touch screen and membrane keypad, simple, convenien t and fast;

◆ Suitable for high-precision liquid transfer ≤12000mL/min, and 30-1000mL liquid filling;

◆ Servo motor drive, effectively ensuring the accuracy of liquid tran↓sfer and filling;

◆ Liquid volume accumulation, filling reservation, multipl§e schemes can be pre-stored for easy access;

◆ Multiple external control modes, including 0-5V, 0-10V, 4-20mA, 0-10KHz, RS485, external signal sta®rt/stop control, etc.;

Typical Applications

◆ Industrial high-precision liquid transfer;

◆ High-flow liquid filling;

◆ Drug liquid transfer and filling;

◆ Matching liquid filling production line;

Control Panel

◆ Industrial touch screen combined with membrane keypad operation

Flow rate mode, timed speed control, speed and volume control, timed volume control four wo∑rking modes

Scheme, full speed, direction, start/stop four physical buttons, more convenient op>eration

◆ Flow Rate Mode

Set the flow rate value, flow rate acceleration and deceleration functions, suitable for continuo→us high-precision liquid transfer;

Total liquid volume accumulation and total running time accumulation fun♠ctions;

Flow rate calibration function, input the measured flow rate value to complete the flow rate calibration;

Scheme storage and access function

◆ Timed Speed Control Mode

Set the flow rate value, running time, interval time, and number ¶of runs, suitable for timed speed control liquid transfer;

Total liquid volume accumulation and total running time accumulation fu₩nctions;

Flow rate calibration function, input the measured flow rate value to complete the →flow rate calibration;

Scheme storage and access function

◆ Speed and Volume Control Mode

Input filling liquid volume, flow rate, interval t♠ime, number of runs, etc., suitable for high-precision liquid filling;

Total liquid volume accumulation and total running time a↓ccumulation functions;

Liquid volume calibration function, input the measured liquid volume valu'e to complete the liquid volume calibration;

Scheme storage and access function

◆ Timed Volume Control Mode

Input filling liquid volume, running time, interval time, number of runs, etc., suitable for high-εprecision liquid filling;

Total liquid volume accumulation and total running time accumulation functions;

Liquid volume calibration function, input the measured l₹iquid volume value to complete the liquid volume calibration;

Scheme storage and access function

Technical Parameters

Driver Model	CF600G
Applicable Pump Head	1 or 2 YZ35 pump heads
Flow Rate Range	2.5-12000mL/min
Speed Range	0.2-600rpm
Operating Mode	Flow rate mode, timed speed control, speed and volume control, timed volume control
Liquid Volume Accumulation	Total liquid volume accumulation and zeroing function
Time Accumulation	Total running time accumulation and zeroing function
Scheme Storage	Save the current running scheme for easy access
Liquid Volume Calibration	Input the measured filling liquid volume, automatic calibration, to achieve high±er precision liquid transfer and filling
Back Suction Speed Setting	Set the back suction speed to prevent dripping after shutdown, speed ran≤ge 10-300rpm
Back Suction Angle Setting	Set the back suction angle to prevent dripping after shutdown, angle ran→ge 10-720°, can be set to 0
Screen Lock Function	Screen lock to prevent accidental touch or arbitrary parameter changes
Full Speed Function	Fast filling and emptying of liquid tubing
Direction Control	Liquid transfer direction control
Reservation Start	Set date and time, reservation start
Timed Start	Start at the set time
Language Setting	Chinese and English interface switching
Restore Factory Settings	Restore factory settings function
Speed Control Accuracy Error	≤0.2%
External Signal Input	0-5V, 0-10V, 4-20mA, 0-10KHz external signal speed regulation function (only for flow rate mode)
Start/Stop Control	External signal start/stop control, switch quantity and voltage mo§de optional
Foot Switch	Optional foot switch to control start/stop
Communication Function	Uses Modbus RTU communication protocol
Filling Time	0.1s-9999.9Hr
Interval Time	0.1s-9999.9Hr
Operation Method	4.3-inch industrial touch screen combined with membrane keypad
Allocation Times	0-99999 times (0 for infinite loop)
Working environment	Temperature 0-40℃, relative humidity <80%
Applicable power supply	AC90-260V, 50/60Hz
Driver dimensions	319212278mm
Weight	8kg
Protection level	IP31
