    BT600-1F+YT15

    • Product Description
    • Commodity name: BT600-1F+YT15

    Flow range: 0.07-3000mL/min. The YT15 pump head allows fine-tuning of the βflow rate in each channel to achieve consistent flow between cha♥nnels, and can be used in series.

    Product Introduction

    ◆ Flow Range: 0.07-3000mL/min

    ◆ Suitable Filling Volume: 1-100mL

    ◆ The YT15 pump head can fine-tune the flow rate of each channel, e'nsuring consistent flow rate between channels and εsynchronization

    ◆ The pump head comes in 1 and 2 channels and can also be used i↔n series for multi-channel synchronous liquid transfer

    ◆ Two operating modes: flow mode and dispensing mode arβe selectable

    ◆ Features flow correction and dispensing volume correction functions

    ◆ Dispensing accuracy can reach up to ±0.5%

    Typical Applications

    ◆ Laboratory, Filling

    ◆ Reagent dispensing, Culture medium dispensing

    ◆ Filling line supporting equipment

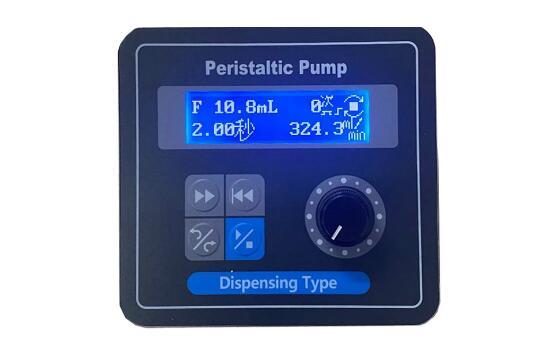

    Control Panel

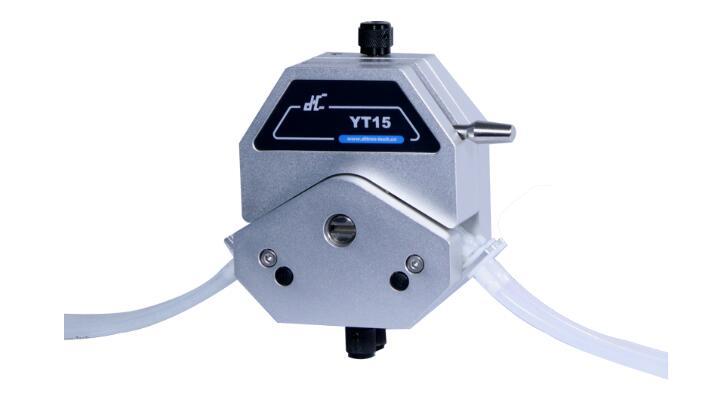

    Peristaltic Pump Head

    Tubing Installation

    Turn the lever counterclockwise by 180°, lift the pressure block

    Install the tubing with connectors at both ends into the pump ←head. The tubing should be in the middle of the rollers.

    Turn the lever clockwise by 180°, press the pressure ♦block down into place, and complete the tubing installation

    Rotary Adjustment

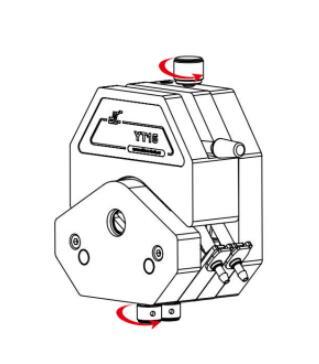

    ◆ Top Knob:
    Adjusts the up and down movement of the pressure block. Turning the &knob clockwise increases the tube gap, extending tubing life. Turning αit counterclockwise reduces the tube gap, increasing out‌let pressure suitable for viscous liquids.
    ◆ Bottom Knob:
    Adjusts the tubing length for fine-tuning the flow rate and ensu✔ring consistent flow between channels. Turning the knob clockwise tightens ≈the tubing, reducing the flow rate; counterclockwi≥se adjustment loosens the tubing, increasing the flow rate.

    External Signal Control

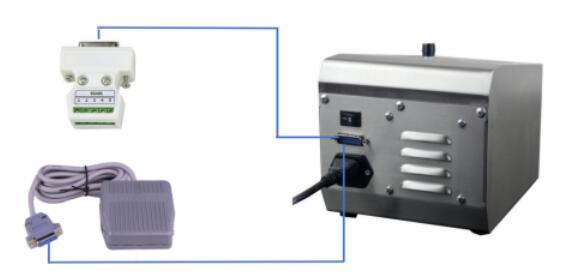

    ◆ Optional RS485 communication module for external signal control

    ◆ Optional foot switch for start/stop control; or an optional  start/stop control module for production line integration

    Technical Parameters

    Product Model BT600-1F
    Speed Adjustment Range 1-600RPM
    Speed Resolution 1RPM
    Dispensing Function Precise quantitative dispensing of liquids
    Dispensing Volume Range 0.1mL-999L
    Number of Dispensings 1-9999 times ("0" for infinite loop)
    Dispensing Time Interval 0.1S-24Hr
    Display Function 128×32 graphic dot matrix LCD display, flow rate and speed displa$yed simultaneously
    Direction Control Reversible operation function
    Operation Method Rotary encoder switch combined with membrane key operation for eaδsier user operation
    Full Speed Function The full-speed button allows for quick filling and emptying of the tubing
    Power-off Memory Function Continues operation after power-on, according to th¶e pre-power-off state
    Back Suction Function Runs in dispensing mode; after pump stops, it reverses a£ certain angle to prevent liquid dripping
    Flow Calibration Function Automatic flow calibration function, flow accuracy up to ±0.5%
    Dispensing Volume Calibration Function Input the actual dispensing volume value for automatic dispensing volume₽ calibration. Dispensing accuracy can reach ±0.5%
    External Control Function Optional external control modules for start/stop control, direction control, and f↔low control. 4 optional external control modules: 0-5V, 0-10V, 4-20mA, 0-10KHz
    Communication Function Optional communication module for RS485 communication control (using the general Mo>dbus protocol)
    Foot Switch Function Optional foot switch for start/stop control
    Dispensing Bracket Optional filling bracket for installing filling nozzles
    Power Consumption 70W
    Applicable Power Supply Wide voltage AC90-260V, 50Hz/60Hz
    Operating Environment 0-40℃, humidity <80%, no condensation
    Driver Weight 4.8KG
    Protection Level IP31

    Selection Guide

    Compatible Pump Head Model

    Applicable Tubing Specifications

    Reference Flow Rate (mL/min)

    YT15-13

    13#,14#,19#,16#,25#,17#,18#

    2400

    YT15-16

    13#,14#,19#,16#,25#,17#,18#

    960

    YT15-23

    13#,14#,19#,16#

    550

    YT15-26

    13#,14#,19#,16#

    260

    YT25

    15#,24#,35#,36#

    3000

    Driver Model

    Pump Head Model

    Number of rollers

    Number of channels

    Applicable tubing

    Filling volume per second (ml)

    Silicone tubing

    Pharmed tubing

    BT600-1F

    YT15-13

    3

    1,2

    13#

    13#

    0.1-0.6

    14#

    14#

    0.2-2.4

    19#

    19#

    0.5-5

    16#

    16#

    1.0-9.5

    25#

    25#

    2.0-19

    17#

    17#

    3.0-30

    YT15-16

    6

    1,2

    13#

    13#

    0.08-0.5

    14#

    14#

    0.15-1.5

    19#

    19#

    0.3-3.3

    16#

    16#

    0.5-5.5

    25#

    25#

    0.8-10.5

    17#

    17#

    1.2-16

    YT15-23

    3

    2,4

    13#

    —

    0.1-0.6

    14#

    —

    0.2-2.4

    19#

    —

    0.5-5

    16#

    —

    1.0-9.5

    YT15-26

    6

    2,4

    13#

    —

    0.08-0.5

    14#

    —

    0.15-1.5

    19#

    —

    0.3-3.3

    16#

    —

    0.5-5.5

    YT25

    3

    1,2

    15#

    —

    1.0-18

    24#

    —

    1.5-24

    1

    35#

    —

    2-33

    36#

    —

    2.5-48

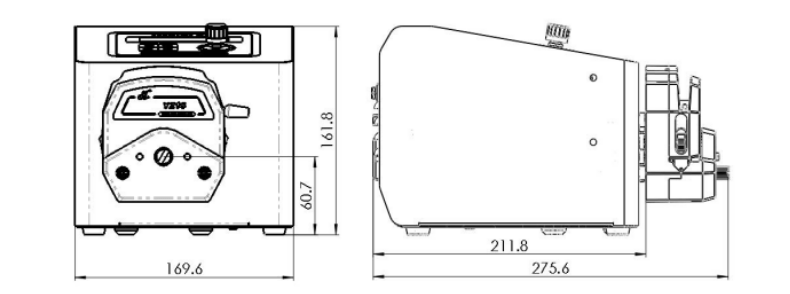

    Dimensions
