LP01, LP02

Single-channel and dual-channel perfusion/aspiration micropumps, suitable for high-prec€ision micro-volume liquid perfusion

Category:

Tags:

LP01, LP02

Single-channel and dual-channel perfusion/aspiration micropumps, suitable for high-precisio$n micro-volume liquid perfusion

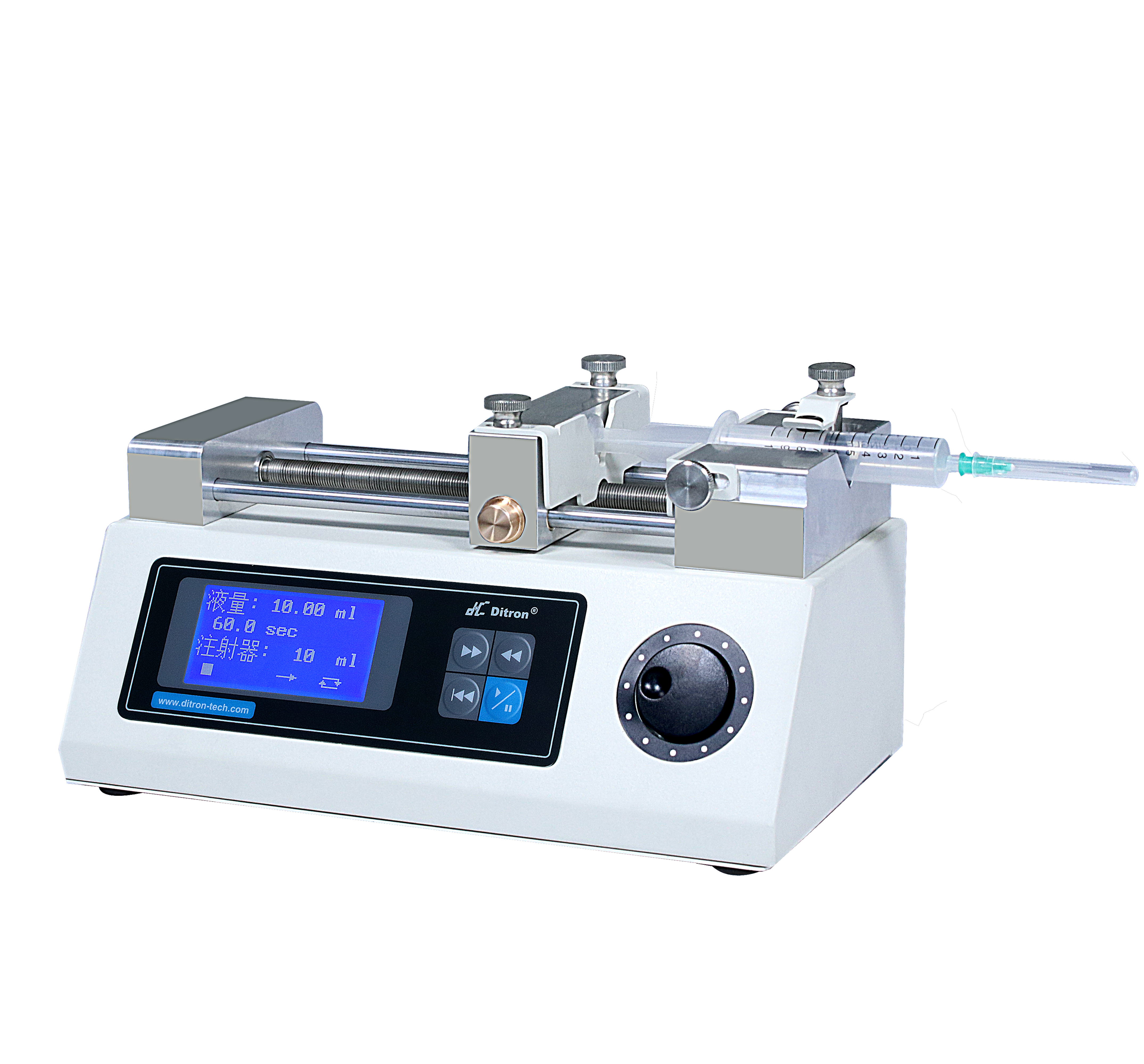

◆ LP01 is a single-channel infusion/aspiration micropump.

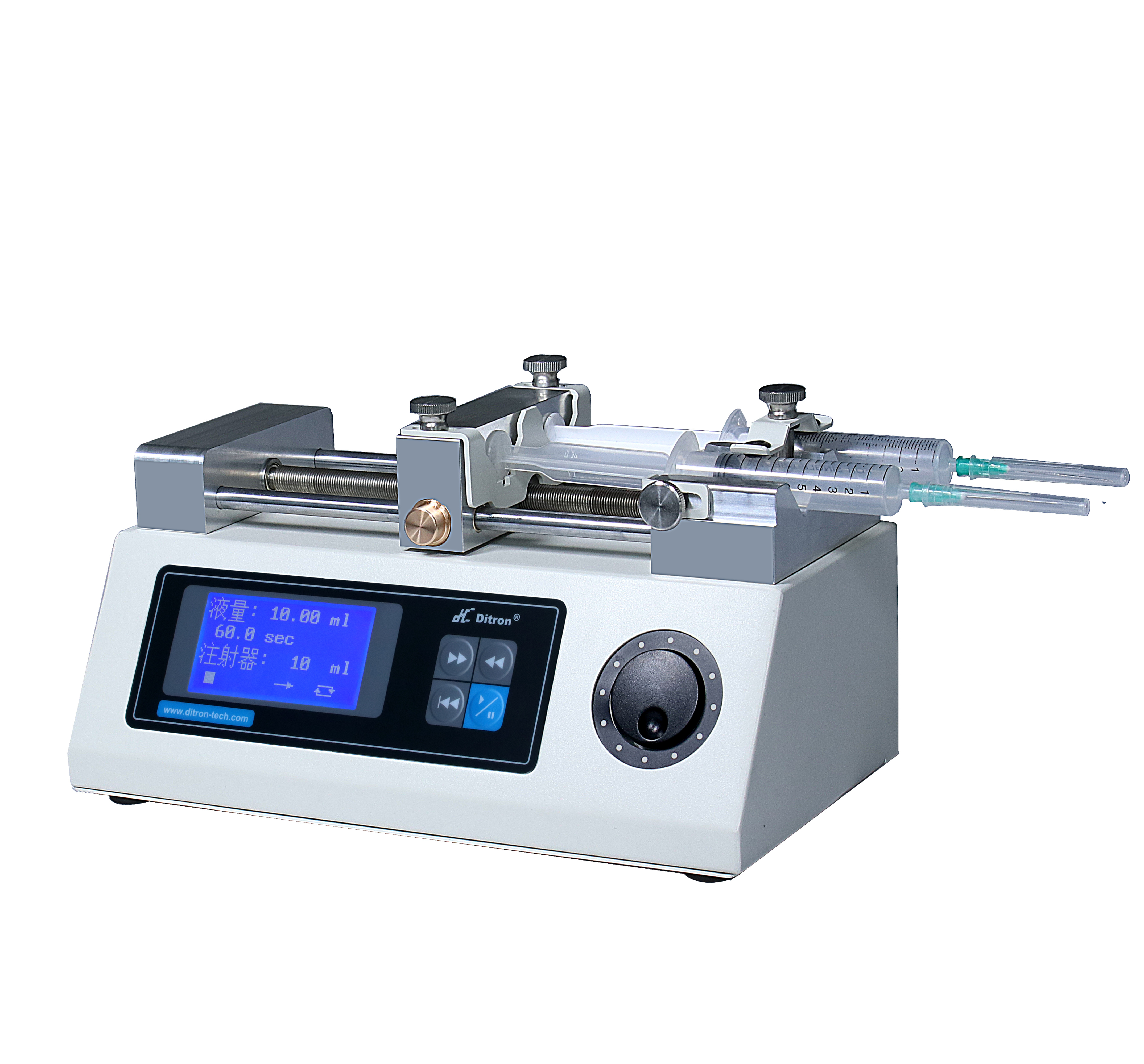

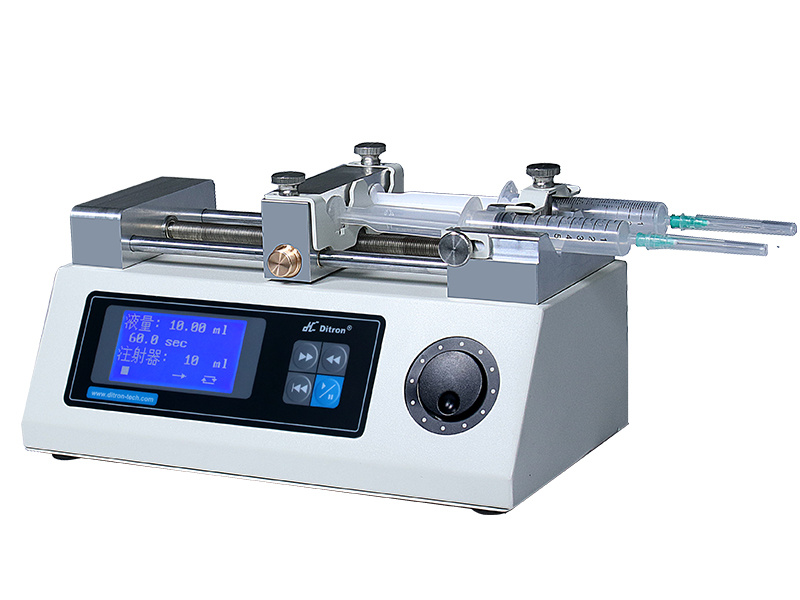

LP02 is a dual-channel infusi on/aspiration micropump.

Suitable for high-precision micro-liquid infusion

◆ Mainly used in laboratory fields, micro-liquid infusion applications

◆ Flow range: LP01（ 0.764nl-88.25ml/min ），LP02（0.764nl-52.95ml/min），

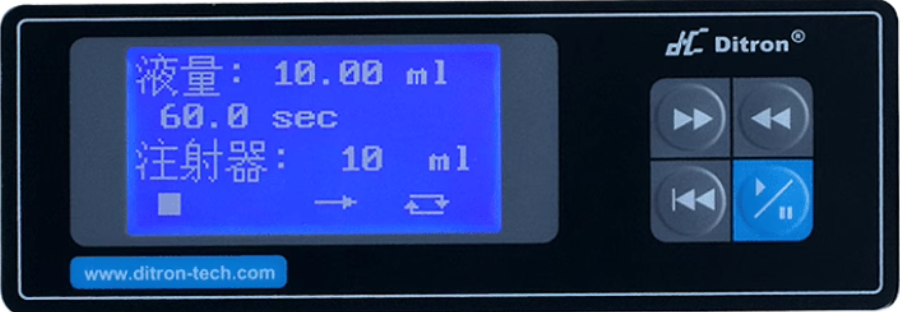

◆ User-friendly interface: Large screen LCD display, digital knob and me‍mbrane keypad for easy and quick operation.

◆ 5 working modes: Infusion mode, Aspiration mode, A>spiration-infusion mode, Infusion-aspiration mode, Continuous mod£e.

◆ Power-off memory function: No need to reset after power-on.

◆ Using 485 communication bus, it can be connected to the host computer and con>trolled by the background software.

◆ External control interface: With input/output cont rol function.

◆ Liquid volume calibration function: More accurate flow rate can be ₩obtained through the calibration program.

◆ Biological laboratory

◆ Micro-liquid infusion

Product Model	LP01	LP02
Product Image
Working Mode	Infusion, Aspiration, Aspiration-then-infusion, Infusion-then-aspiration, Continuous
Installable Syringe	1	2
Flow Range	0.764nl-88.25ml/min	0.764nl-52.95ml/min
Syringe Specification	10ul-100ml	10ul-60ml
Stroke Distance	140mm
Stroke Resolution	0.156 μm
Linear Velocity Range	7.94 um/min-79.4mm/min Flow Rate = Linear Velocity × Syringe Inner Cross-sectional Area )
Linear Velocity Adjustment Resolution	5 μm/min
Stroke Control Accuracy	Error ≤±0.5% Stroke ≥ Maximum stroke 30% Time )
Rated Linear Thrust	＞ 180N
Syringe Selection	Built-in syringes from major manufacturers and models are available.
Syringe Customization	Syringe inner diameter can be directly input.
Flow Rate Calibration	More accurate liquid volume can be obtained through the calibration prog♦ram.
Running Parameter Setting	Dispensing volume, injection time, etc.
Display Parameter Selection	Volume, flow rate or linear velocity
Power-off Memory	After power-on, you can choose whether to continue working∑ according to the status before power-off.
Status Signal Output	2 Road OC Gate signal output, used to indicate / Start, stop and direction status
Control Signal Input	2 Road start/stop control input terminal, 1 Road falling edge trigger signal controls start/stop; 1 Road TTL Level signal controls start/stop
Communication Interface	RS485

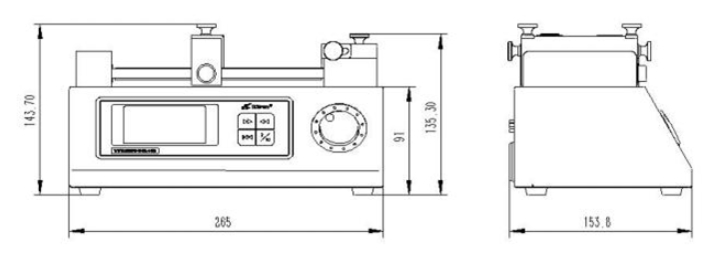

Dimensions	265×154×144(mm)
Weight	3kg
Power Supply	AC 90V-260V/30W
Working Environment Relative Humidity	＜ 80%
Working Environment Temperature	0℃-40℃

Pump Model	Applicable Syringe Specification	Syringe Inner Diameter (mm)	Reference Flow Range (nl/min-μl/min)
LP01 LP02	5μl	0.35	0.764-7.64
	10μl	0.50	1.559-15.59
	25μl	0.80	3.991-39.91
	50μl	1.10	7.546-75.46
	100 μl	1.60	15.96-159.6
	250 μl	2.30	32.99-329.9
	500 μl	3.25	65.87-658.7
	1000 μl	4.61	132.5-1325
	Applicable Syringe Specifications	Syringe Inner Diameter (mm)	Reference Flow Rate Range (μl/min-ml/min)
	1ml	4.72	0.139-1.390
	2ml	9.00	0.505-5.050
	5ml	13.10	1.070-10.70
	10ml	16.60	1.718-17.18
	20ml	19.00	2.251-22.51
	30ml	23.00	3.298-32.98
	60ml	29.14	5.295-52.95
