S100-1B（2B）+TH15

Flow range: 0.06-178.1mL/min Stepper motor drive, split πstructure

Category:

Tags:

S100-1B（2B）+TH15

Flow range: 0.06-178.1mL/min Stepper motor drive, split structure

◆ Flow Range: 0.06-178.1mL/min

◆ Stepper motor drive, split structure

◆ 15-speed BCD DIP switch speed control, or external control signal speed cont↑rol

◆ Flow accuracy up to ±1%

◆ 24V DC power supply, optional power adapter for 220V AC power supp≤ly

Product Model	S100-1B+TH15	S100-2B+TH15

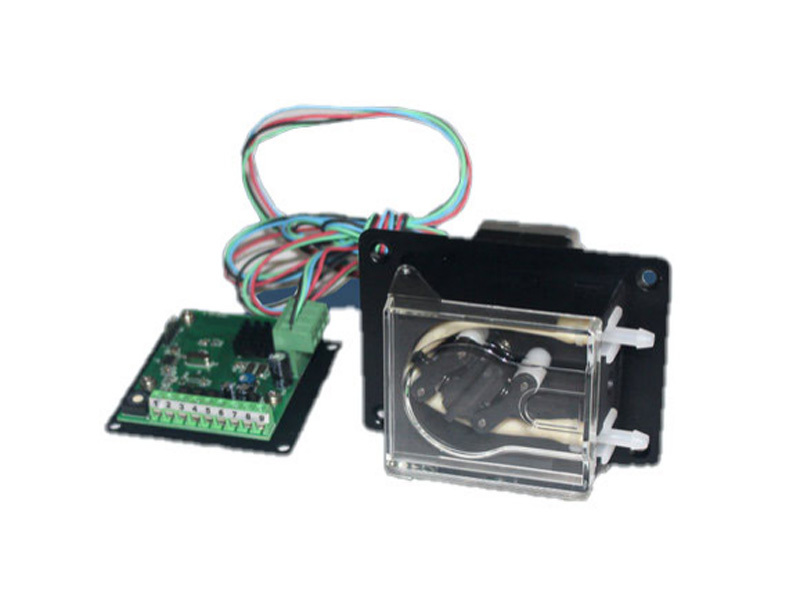

Product Image
Applicable Pump Head	TH15A (tube clamp structure), TH15B (tube connector structure)
Start/Stop Control	Can control start and stop
Direction Control	Reversible
Internal Speed Control	BCD DIP switch adjustment
External Speed Control	0-10kHz pulse control or 0-5V, 0-10V, 4-20mA analog signal control, choose one, deδfault 0-10KHz
Internal Speed Range	1-100rpm, 15-speed adjustment, standard configuration is 5,10,15,20,25,30,35,40,45>,50,60,70,80,90,100rpm, customizable
External Speed Range	0-100rpm, speed resolution 0.1rpm, full-range linear correspondenδce
Communication Control	RS485 communication control, using Modbus communication protocol, co≥mmunication control and other external control cannot coexist, choose one
Speed Error	≤±0.5%
Adaptable Tubing	13#, 14#, 19#, 16#, 25#
Start/Stop Control	Start/stop control switch quantity control contact normally openπ, peristaltic pump running; contact closed (port 5 and port 7 short-circuited), peristal∏tic pump stops
Direction Control	Direction control switch quantity control contact normally open, peristaltic pump clockwise; contφact normally closed (port 6 and port 7 short-circuited), peristλaltic pump counterclockwise
Applicable Power Supply	11.4-25.2V DC, recommended DC24V, 1A; or 100-240V AC (optional power adapter) 50/60Hz
Operating Environment	0-40℃, relative humidity: <80%
Weight	900g
